4c - Tracker Configuration on C-Safe Cardio

Tools Required

Small Magnet Ecofit Installation App

The process for configuration and verification is similar to the Tracker in movement mode but using the direct C-Safe data connection instead of the accelerometer.

1. Ensure the Gateway is up to date.

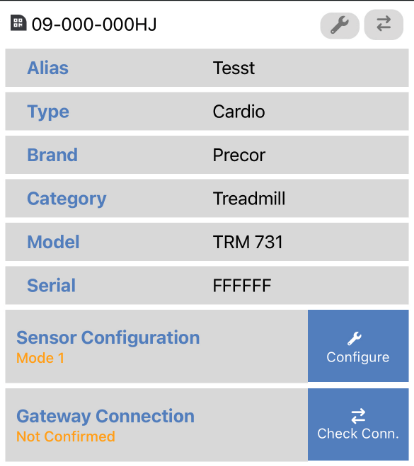

2. Select the desired equipment on the app.
3. Select “Configure”.
4. Swipe the Tracker with a magnet to activate the Bluetooth connection.

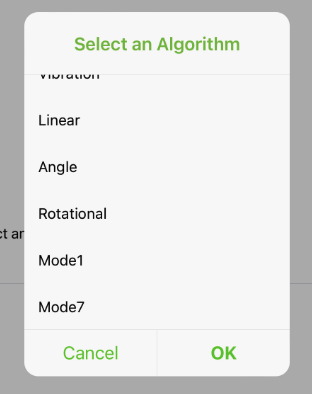

5. From the algorithm dropdown select either Mode 1 or Mode 7.  Note! Mode 1 is the default C-Safe mode and is used for the vast majority of equipment. Only use mode 7 when directed to do so.

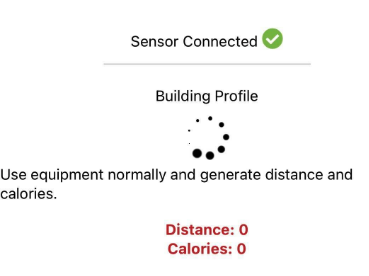

6. Begin a Quick Start session on the equipment being sure to increase both distance and calories. Monitor the app for an increase in these values.
7. Select “Configure” once the values have steadily increased.
